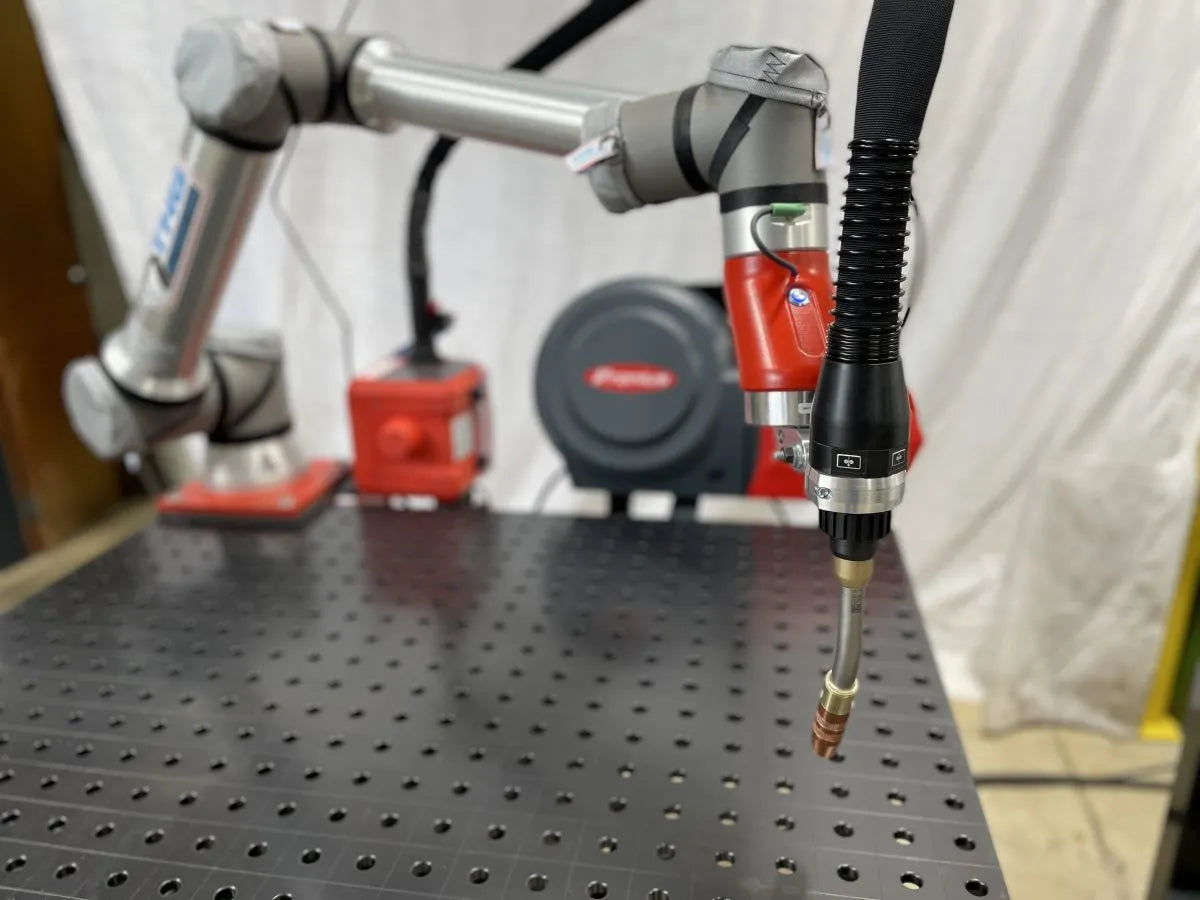

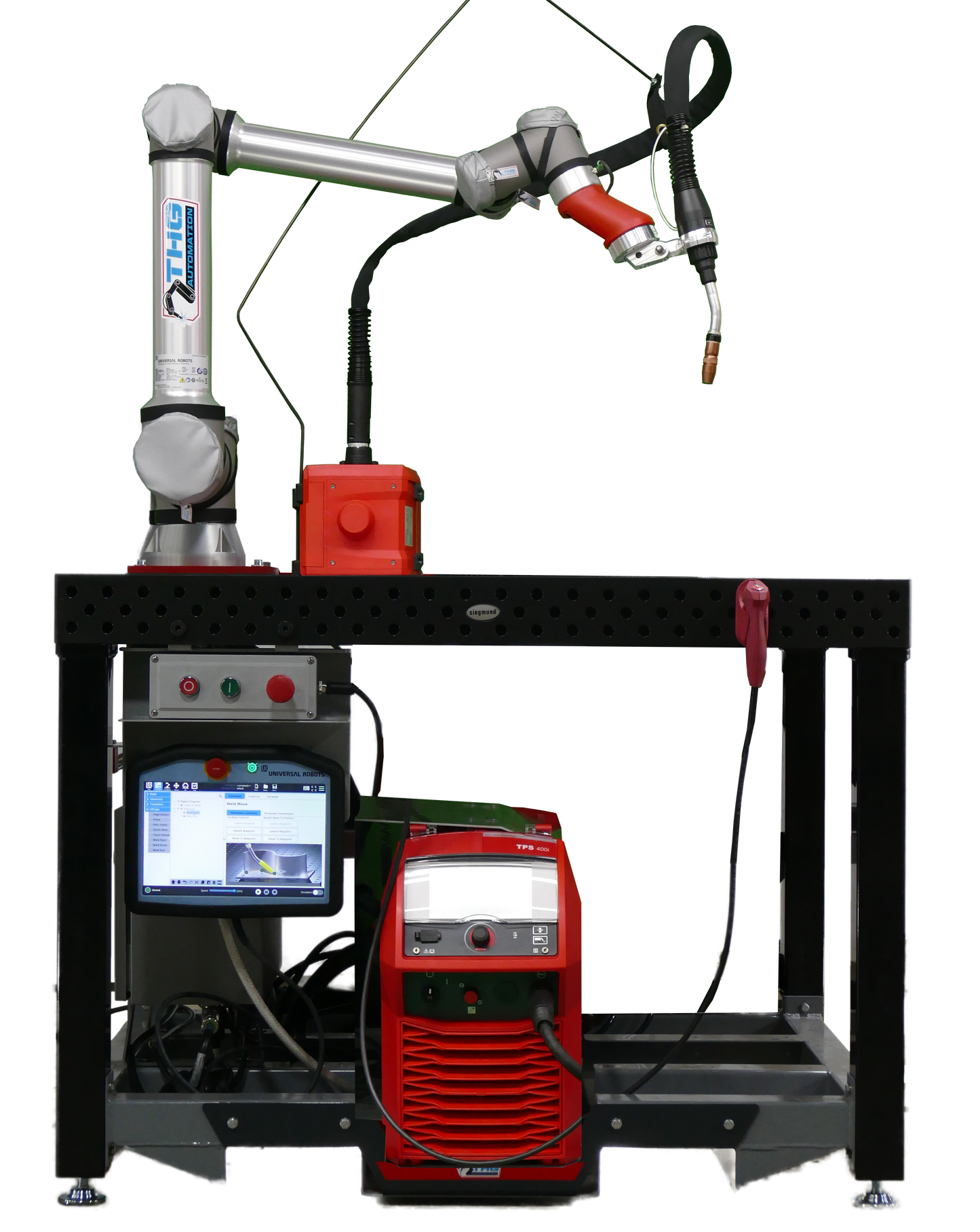

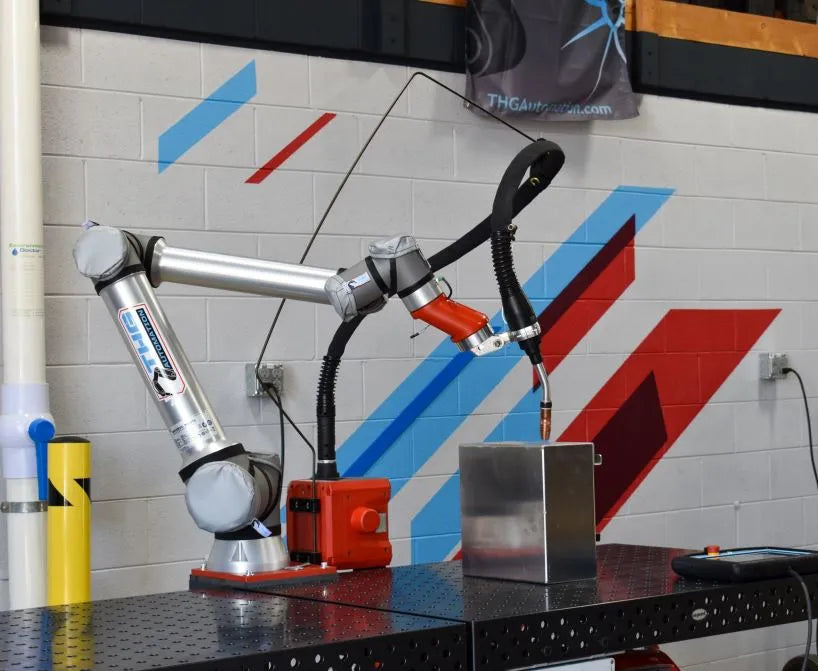

URW-2 Air-Cooled Push System

Universal Robots UR10e, Fronius welding equipment, and Siegmund welding table with fixturing.

The base push system is great for welding carbon steel, stainless steel, and can push aluminum, which includes these Fronius options:
-TPS 400i Power Source with 1000 jobs, Teach Mode, Job Editor, and more.
-Wire Feeder
-Spool Holder or Wire Barrel Kit
-Push Torch

Each system includes the Universal Robots UR10e 10 kg payload robot with the THG Automation interface software, which includes all the features listed above.

Included MIG welding processes:
-Synergic Standard
-Synergic Pulse
-Synergic Syncro-Pulse
-PMC

And additional options upon request:
-LSC
-LSC Root

Each system also includes a 3′ x 4′ Siegmund Imperial Series Welding Table with the following fixturing:
-(x4) Professional Screw Clamps
-(x12) Short Fast Clamping Bolt Burnished
-(x8) Universal Stop 9” 225 L-Nitrided
-(x4) Stop and Clamping Square (12” Tall) (Nitrated)
-(x1) 4 Piece Maintenance Set
-(x1) Set of Bottles

The base push system is an aircooled system that is great for welding carbon steel, stainless steel and can push aluminum. We suggest moving to System 2 if you want to run a lot of aluminum or aluminum wire sizes under .062” or 1.6 mm.

• Weaving – Set the weave pitch, length, angle, dwell left, and dwell right.
• Seam Tracking – Follow part deviation with ease.
• Part Check – Quickly check to see if a part or feature is present with touch sensing to protect your tooling and configure your welding process.
• Touch Sensing – Find part variations to adjust weld points in multiple dimensions.
• 1000 weld jobs – Large welding job storage and access to those jobs at any point in the welding process.
• Job Editor – Access all your welding job parameters to copy, move, edit, backup, and restore to speed up welding development.
• Fronius Teach Mode – Protect the welding wire from getting bent while teaching and simulating program points.
• Welding Simulation – Quickly turn welding simulation on and off while the welding program is running with a dedicated hand-held wand.
• Copy and Pattern welding programs – Use Universal Robots Features to move, copy, or pattern welding programs.
• Stitch weld, quickly set two points, weld length, and the number of welds to automatically create a series of strip welds.
• Wire Feeding – Feed wire from a barrel or from the optional spool holder.
• Starter kit of welding consumables including welding tips liners
• Pendant Armor teach pendant protector
• Screen Protector
• Robot arm spatter guard system
• Fronius specific tool kit
• Free software upgrades for a year, including future options
• Free phone support
• And more coming soon…
