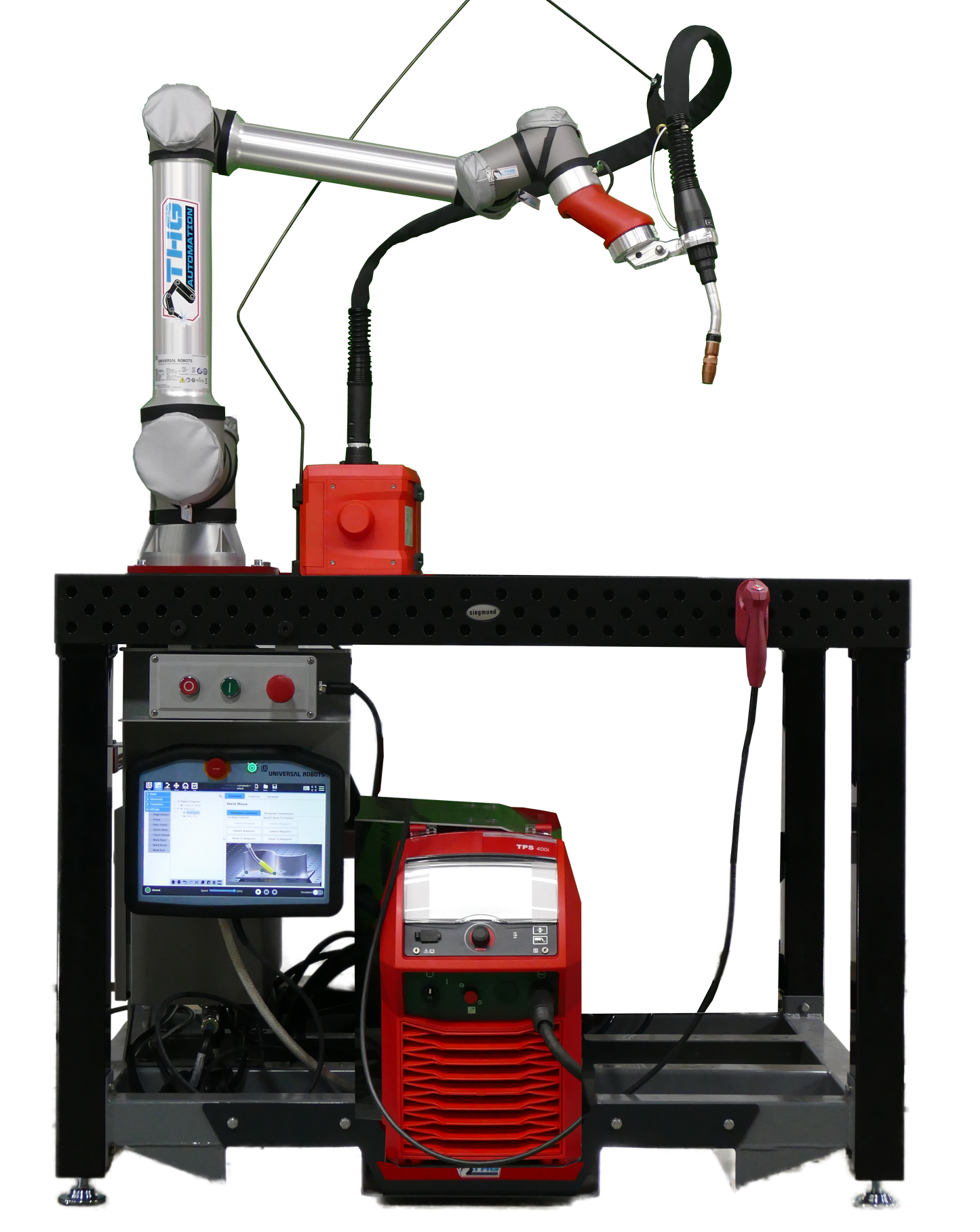

URW-2W Water-Cooled Push System

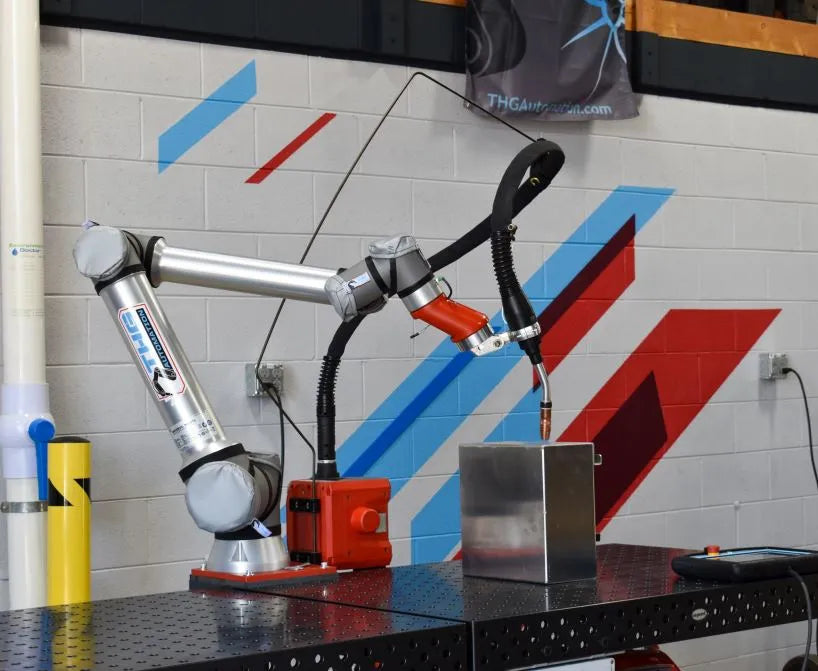

Universal Robots UR10e, Fronius welding equipment, and Siegmund welding table with fixturing.

The water-cooled push system is great for welding carbon steel, stainless steel, and can push aluminum, which includes these Fronius options:
-TPS 400i Power Source with 1000 jobs, Teach Mode, Job Editor, and more.
-Wire Feeder
-Spool Holder or Wire Barrel Kit

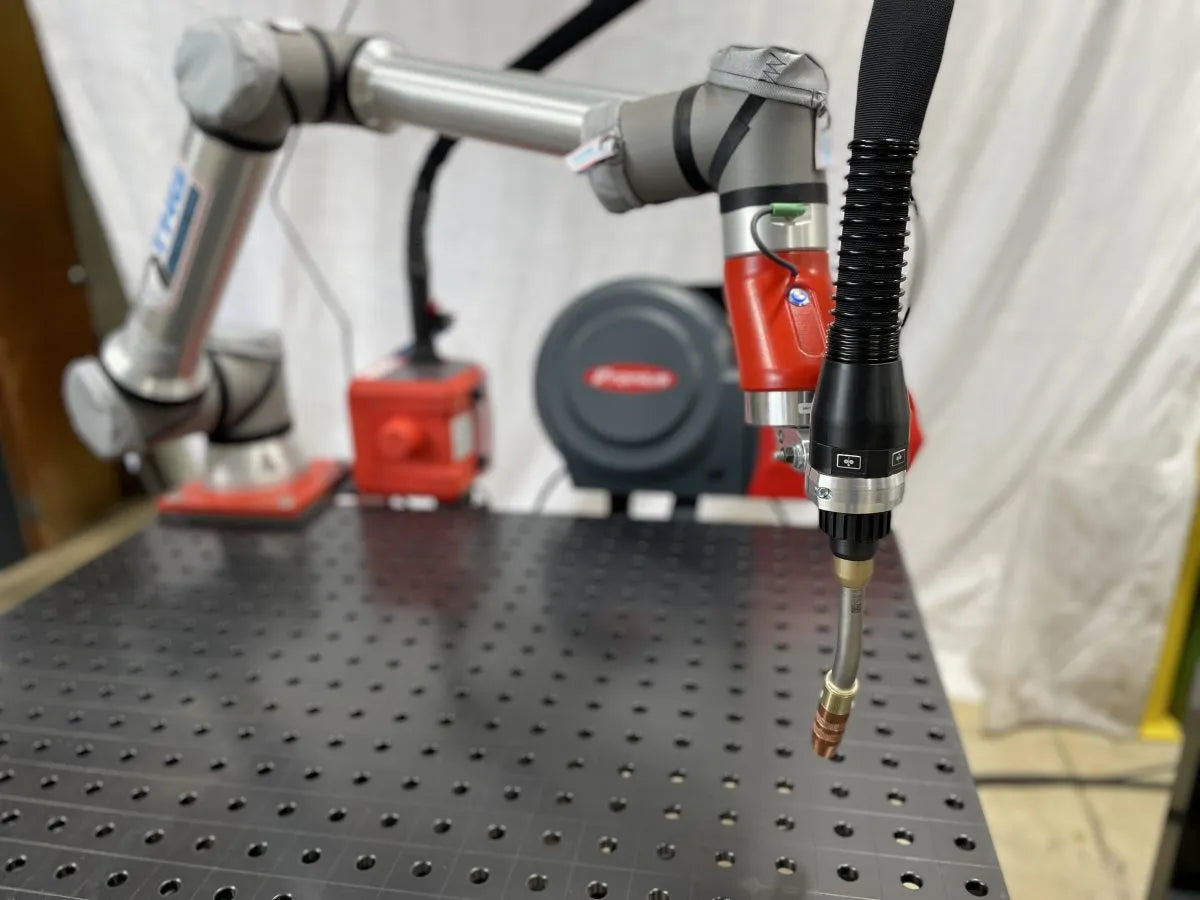

-Push Torch

Each system includes the Universal Robots UR10e 10 kg payload robot with the THG Automation interface software, which includes all the features listed above.

Included MIG welding processes:
-Synergic Standard
-Synergic Pulse
-Synergic Syncro-Pulse
-PMC

And additional options upon request:
-LSC
-LSC Root

Each system also includes a 3′ x 4′ Siegmund Imperial Series Welding Table with the following fixturing:
-(x4) Professional Screw Clamps
-(x12) Short Fast Clamping Bolt Burnished
-(x8) Universal Stop 9” 225 L-Nitrided
-(x4) Stop and Clamping Square (12” Tall) (Nitrated)
-(x1) 4 Piece Maintenance Set
-(x1) Set of Bottles

The water-push system includes all the features of the base air-cooled push system with the addition of a water cooler to assit with heat reduction during higher duty cycles. This system is great for welding carbon steel, stainless steel and can push aluminum. We suggest moving to System 2 if you want to run a lot of aluminum or aluminum wire sizes under .062” or 1.6 mm.

• Weaving – Set the weave pitch, length, angle, dwell left, and dwell right.
• Seam Tracking – Follow part deviation with ease.
• Part Check – Quickly check to see if a part or feature is present with touch sensing to protect your tooling and configure your welding process.
• Touch Sensing – Find part variations to adjust weld points in multiple dimensions.
• 1000 weld jobs – Large welding job storage and access to those jobs at any point in the welding process.
• Job Editor – Access all your welding job parameters to copy, move, edit, backup, and restore to speed up welding development.
• Fronius Teach Mode – Protect the welding wire from getting bent while teaching and simulating program points.
• Welding Simulation – Quickly turn welding simulation on and off while the welding program is running with a dedicated hand-held wand.
• Copy and Pattern welding programs – Use Universal Robots Features to move, copy, or pattern welding programs.
• Stitch weld, quickly set two points, weld length, and the number of welds to automatically create a series of strip welds.
• Wire Feeding – Feed wire from a barrel or from the optional spool holder.
• Starter kit of welding consumables including welding tips liners
• Pendant Armor teach pendant protector
• Screen Protector
• Robot arm spatter guard system
• Fronius specific tool kit
• Free software upgrades for a year, including future options
• Free phone support
• And more coming soon…
